Lightweight High-Performance Winch

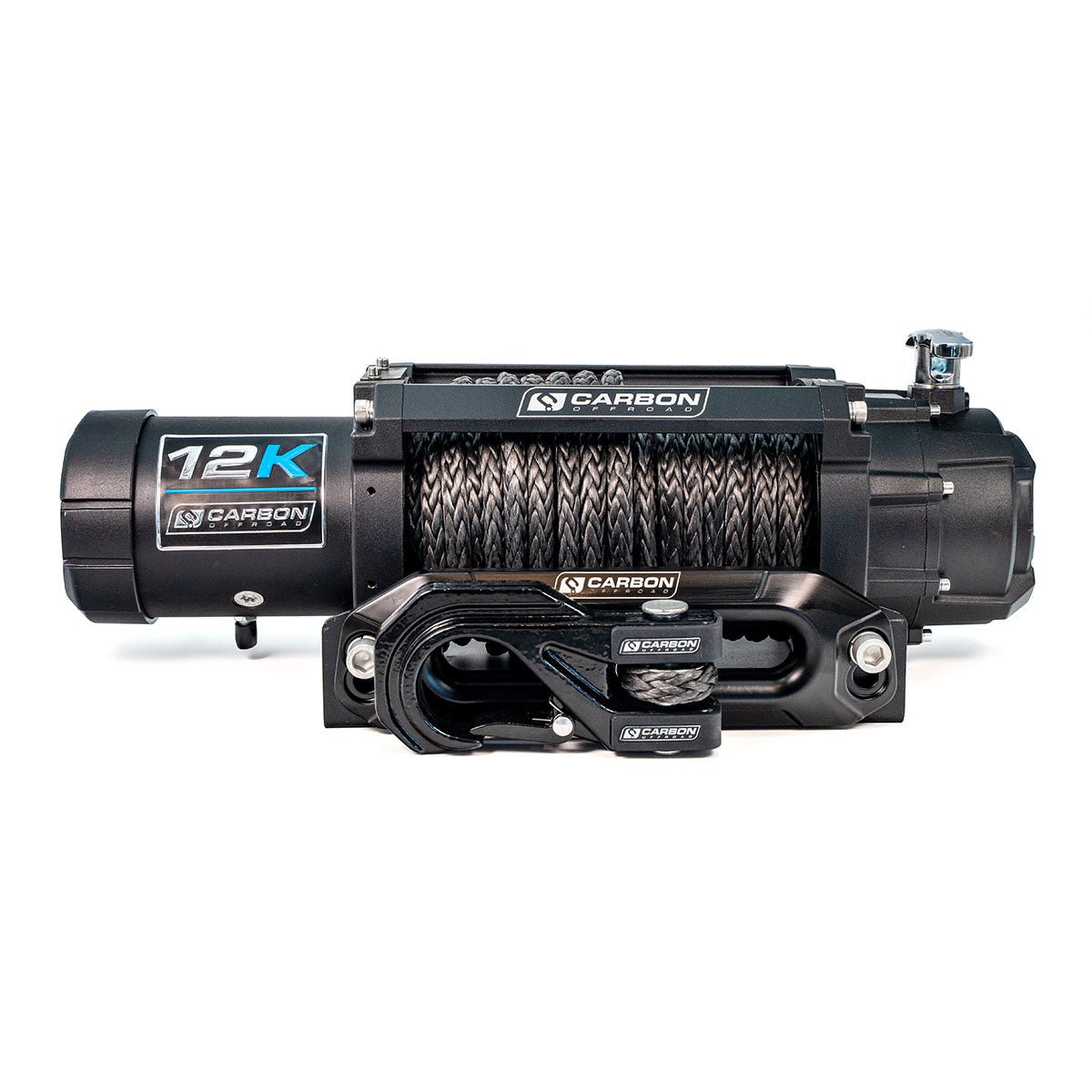

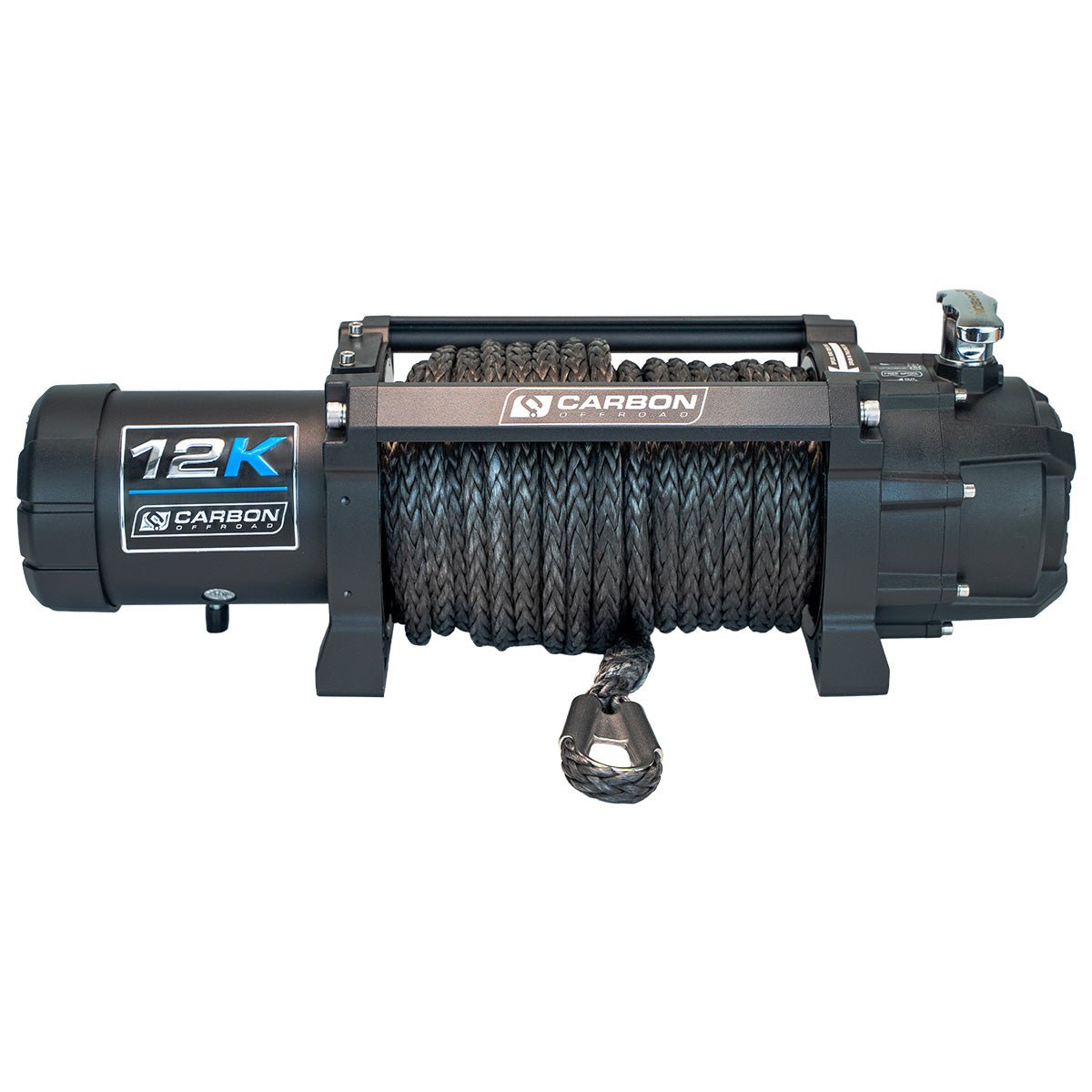

The Carbon 12K V3X is a lightweight, high-performance 12000lb (5450kg) electric winch designed to handle tough off-road conditions.

Overview

PLEASE NOTE: THIS ITEM IS WINCH ONLY. Accessories including remotes, synthetic rope, fairlead, hook, isolator switch, cabling, and mounting hardware are not included and must be sourced separately.

Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it is built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free. This winch features a breathable membrane-style motor breather for heat expansion and contraction.

The Carbon 12K is a proven performer with extensive use across Australian off-road environments. For peace of mind, it is backed in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. The Carbon 12K is designed to meet the rugged demands of off-road and utility use in Australian conditions, delivering reliable performance and service life when correctly installed.

Features

• Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.
• IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
• Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
• Automatic Braking: Includes a full load automatic brake installed in the motor housing end plate for safety and control.
• Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Contents

1 x Carbon 12K Winch (Winch Only V3X)

Note: Supplied as a bare unit. Accessories and control boxes must be selected separately to suit the vehicle and application.

12V DC Performance Specs

Lightweight High-Performance Winch

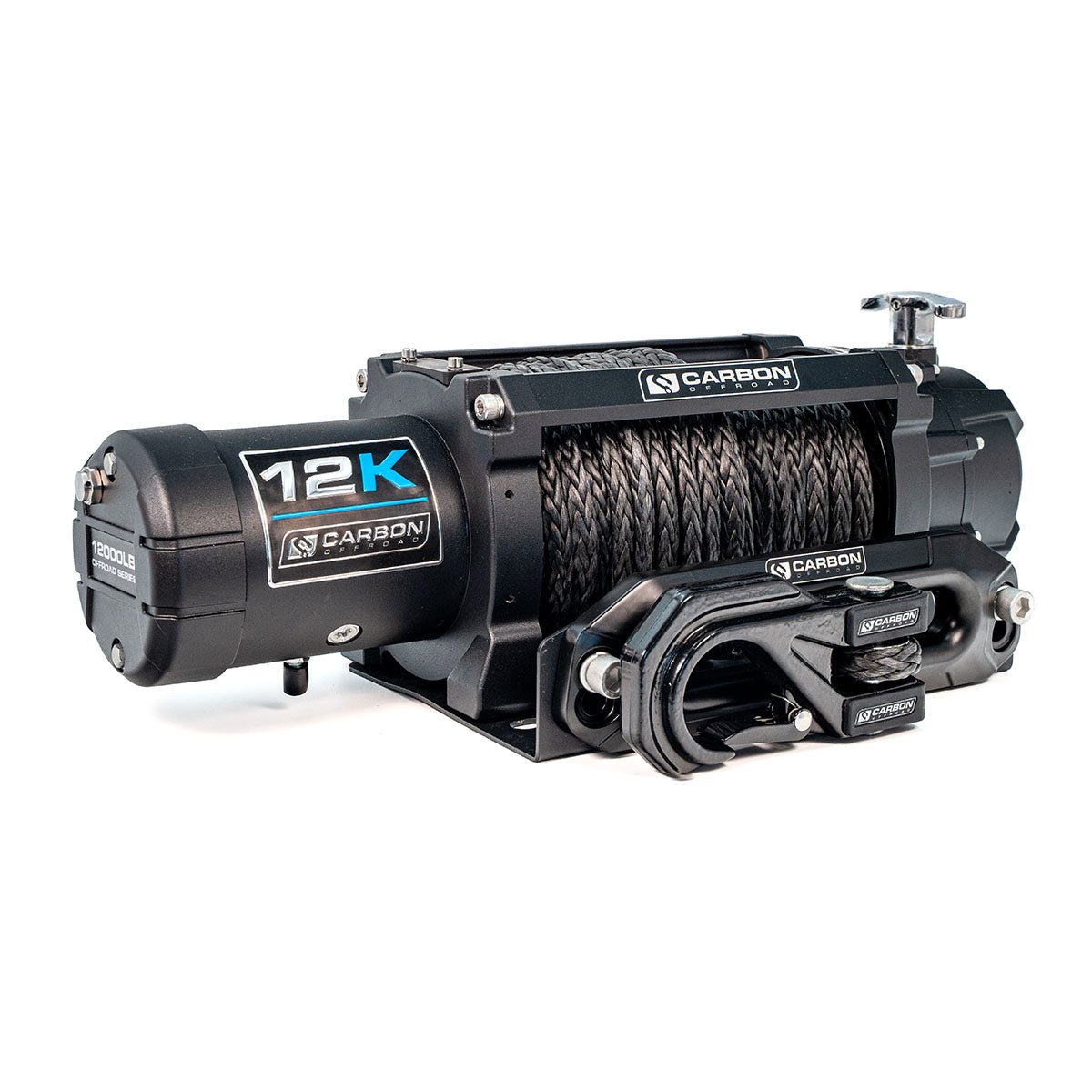

The Carbon 12K V3X is a lightweight, high-performance 12000lb (5450kg) electric winch designed to handle tough off-road conditions.

Overview

Engineered in Australia and refined through real-world use. With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. River crossings and mud runs are stress free; this winch features a breathable membrane-style motor breather for heat expansion and contraction.

Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware—it’s ready for installation straight out of the box. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote from the safety and convenience of your driver's seat.

The Carbon 12K is a proven performer with countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind, it is backed here in Australia by a class-leading 5-year water ingress and electrical warranty, and a lifetime geartrain warranty. It is designed to meet the rugged demands of off-road and utility use in Australian conditions, delivering reliable performance and service life.

Features

• Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.
• IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).
• Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.
• Complete Installation Kit: Includes a CNC'd anodised alloy signature Carbon fairlead paired with our robust MegaPro hook, plus an isolator switch with extra cabling for safety when not in use.
• Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Contents

1 x Carbon 12K Winch V3X
1 x MegaPro Hook
1 x Synthetic Rope (24m x 10mm diameter)
1 x CNC Billet Alloy Black Anodised Fairlead
1 x Wired Remote Control (12ft/3.7m lead)
1 x Wireless Remote Control
1 x Isolator Switch and Cabling
1 x Mounting Hardware Set

12V DC Performance Specs

Ultimate Winching Reliability

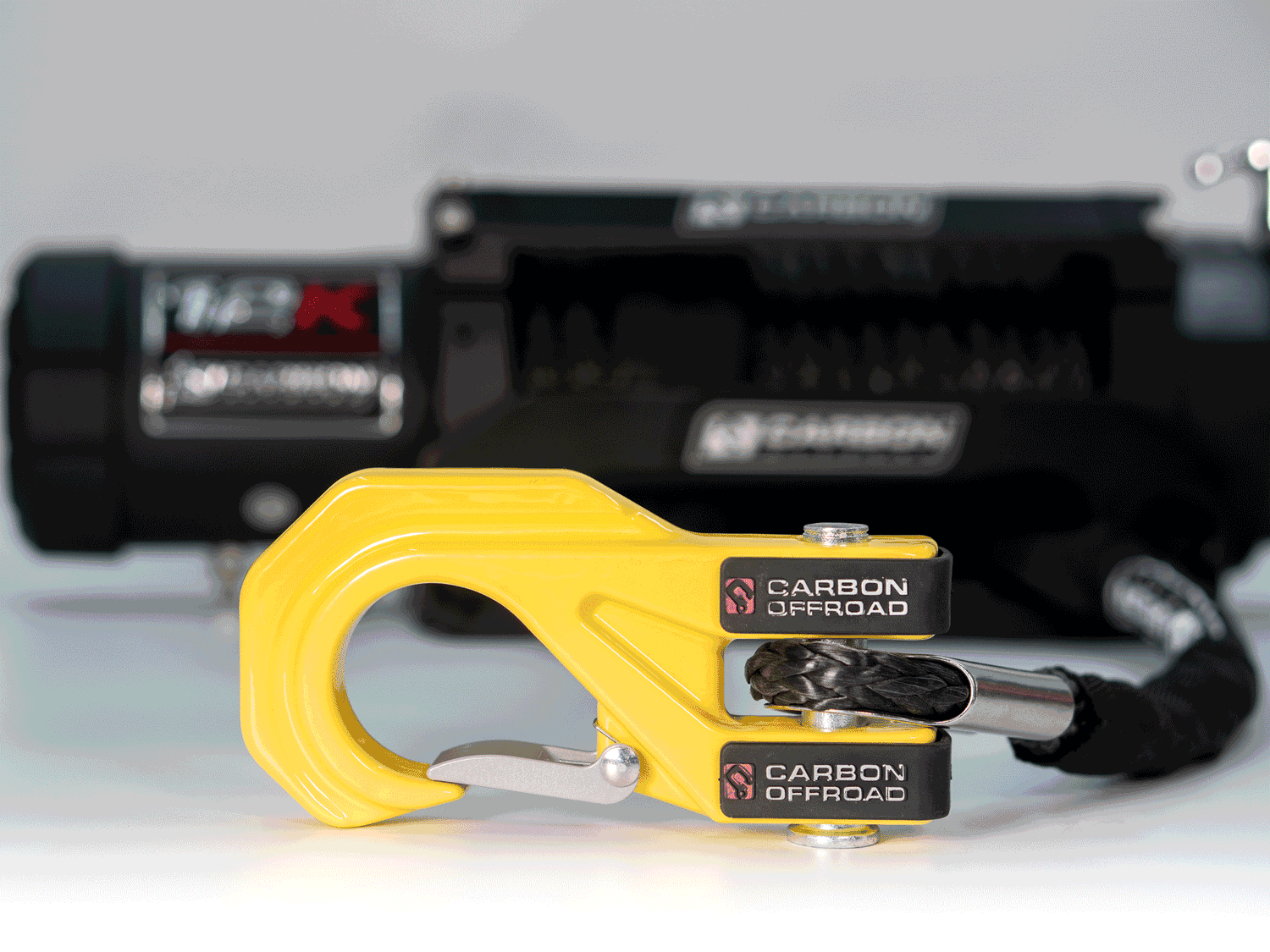

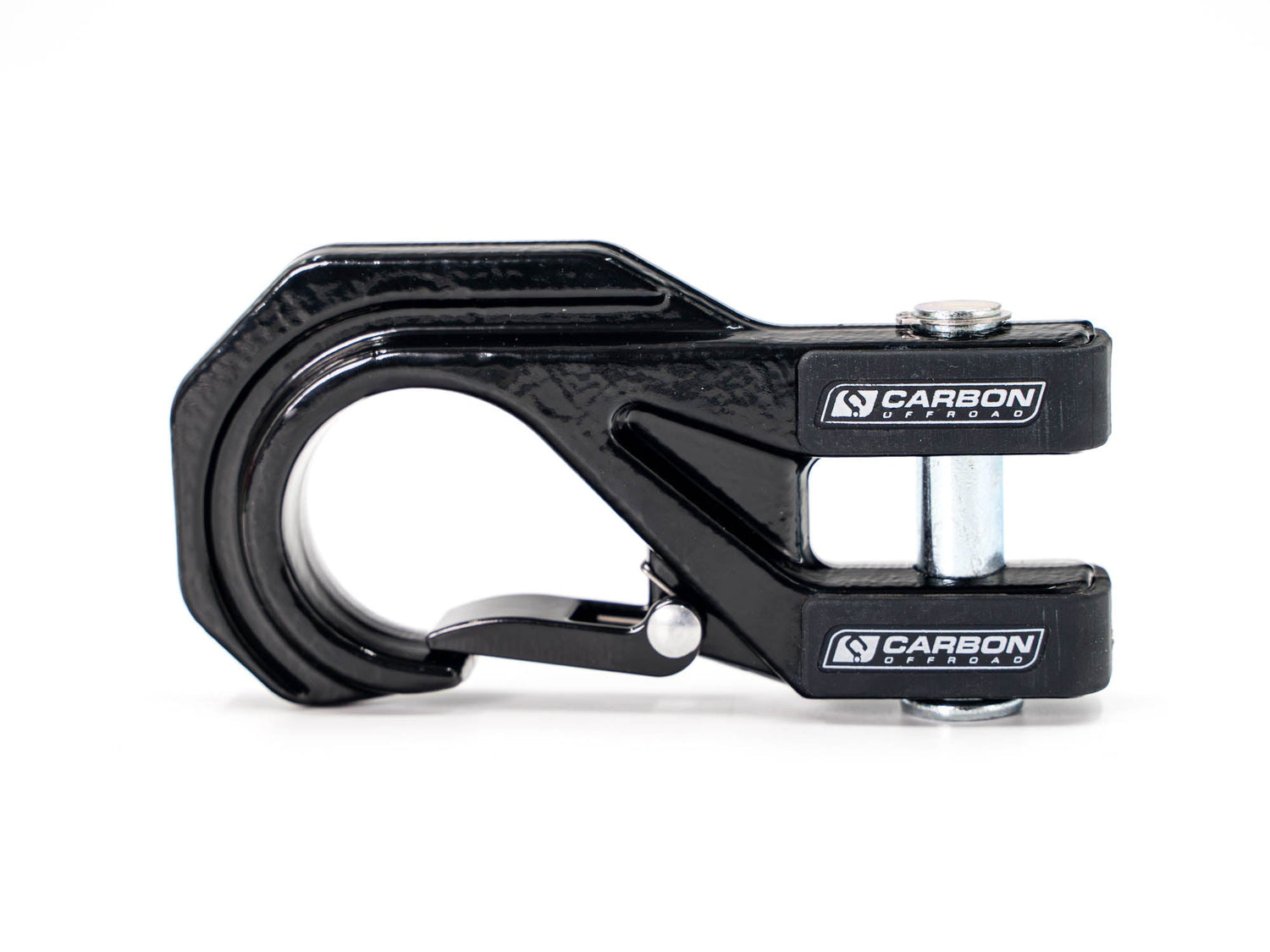

The Carbon Offroad MegaPro Winch Hook is a purpose-built, forged 40Cr winch hook rated for up to 9071.8kg (20000lbs). Featuring an I-beam construction and full through-pin mounting, it offers unmatched durability and easy stowage for any recovery setup.

Overview

The Carbon Offroad MegaPro Winch Hook is the latest innovation from the in-house design team at Carbon Offroad. Engineered from the ground up, this hook is purpose-built specifically for winching applications. It offers a simple, functional, and cost-effective solution for users seeking a reliable winch hook.

Purpose-Built Design & Testing

Unlike generic hooks sourced from lifting and rigging suppliers, the MegaPro Hook is entirely designed and developed from scratch. The team handled everything internally, from concept design and 3D-printed prototypes to real-world testing of form, fit, and function. Advanced FEA (Finite Element Analysis) was used to perfect the structure, optimizing strength while eliminating unnecessary material. The result is a hook that is strong, functional, and ready for real-world use.

Materials & Construction

The hook is forged and heat-treated using 40Cr alloy steel, selected for its excellent strength-to-weight ratio, workability, and reliability under stress. A standout feature of the MegaPro Hook is its I-beam construction, which enhances strength without adding excess weight. The alloy gate is cast to achieve a balance between durability and lightweight performance. This manufacturing process results in a highly durable product designed to withstand demanding winching conditions, essentially creating a near-indestructible hook built to last a lifetime.

Durable Finish

To ensure long-term protection, the hook is coated using a high-quality powder coating process. This finish offers excellent resistance to UV degradation and protects the base material, similar to coatings used on exterior architectural aluminum.

Versatile Functionality

The hook is designed for convenient stowage against the fairlead, either flat or upright. This allows users to easily attach a soft shackle or tree protector loop with one hand and efficiently deploy the rope to the anchor point.

Easy Installation

The MegaPro Hook features a full through-pin mounting system, secured externally with a circlip. This design ensures a simple and secure attachment to your winch rope.

Load Capacity

This hook is rated for safe use with winches up to 9071.8kg (20000lbs), making it suitable for a wide range of heavy-duty recovery applications.

Customizable Rubber Pads

The included rubber pads are press-fit and removable, allowing you to position the logos to suit your setup. Once finalized, they can be permanently secured using rubber cement if desired.

Design Registration & Value

This product is protected under an Australian Registered Design (Design Number: 202116716), highlighting its unique engineering and originality. Carbon Offroad has focused on delivering a high-quality product at an accessible price point, providing excellent value without compromising on performance or durability.

Features

• Construction: Forged and heat-treated 40Cr alloy construction
• Design: Unique I-beam design for strength and weight reduction
• Compatibility: Compatible with winches up to 9071.8kg (20000lbs)
• Finish: Durable powdercoat finish for long-lasting UV and corrosion protection
• Usability: Easy-to-use hook gate for quick soft shackle or tree protector attachment
• Stowage: Flat or end stowable against the fairlead
• Customization: Customizable rubber pads with press-fit and glue-on options
• Installation: Secure through-pin with external circlip for simple installation

Contents

1 x Carbon Offroad MegaPro Winch Hook
1 x Set of removable rubber pads

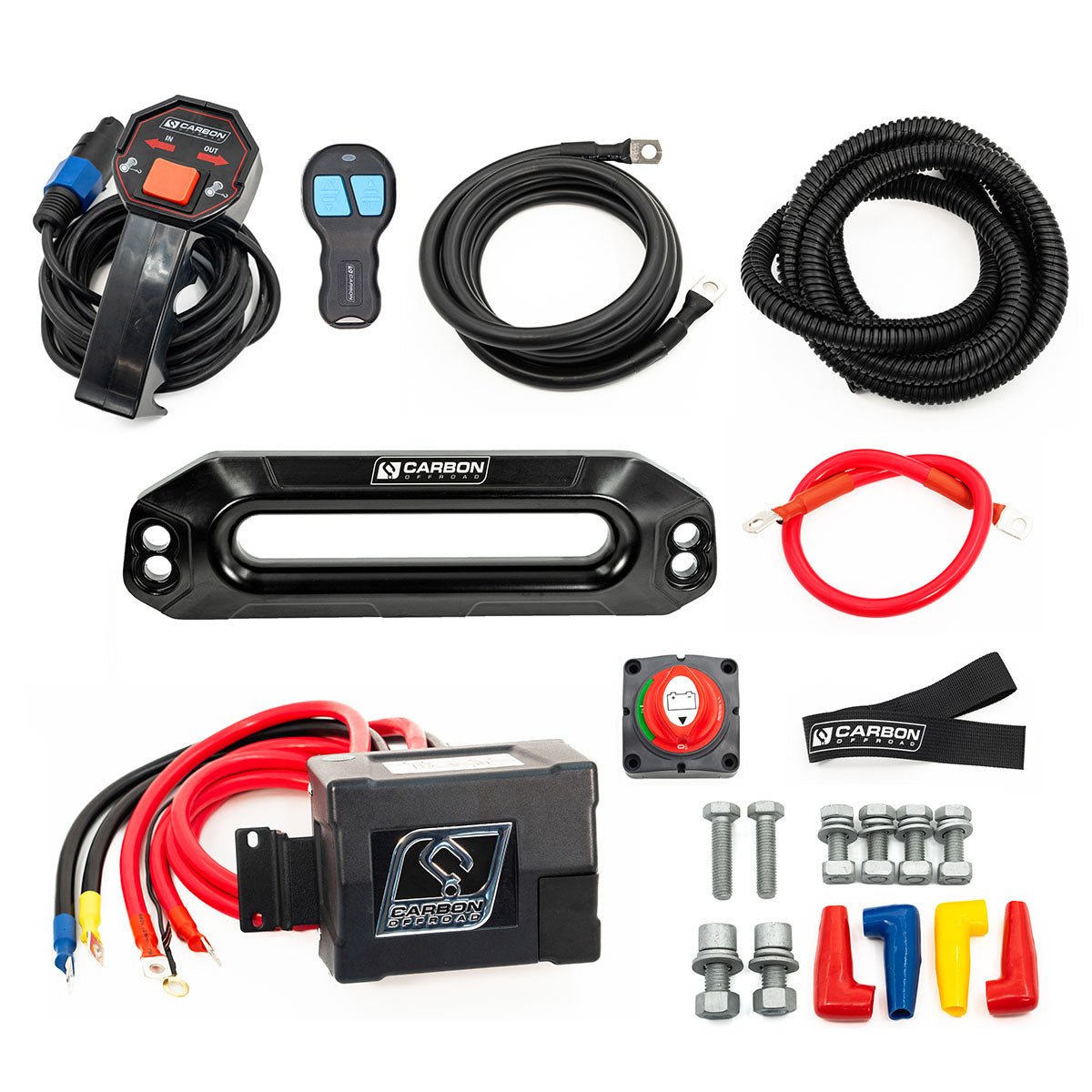

The Carbon Winch Accessory Kit 12V is a comprehensive control and hardware upgrade from Carbon Offroad, designed for setting up or replacing essential components on a 12V electric winch.

Versatile Control & Hardware

Built to handle rugged off-road conditions, this kit provides a complete recovery solution with common mounting configurations in mind. Winch control is handled via dual-remote functionality for ultimate recovery flexibility. Use the wired remote when working close to the drum for direct control, or switch to the wireless remote when you need flexibility during positioning and recovery.

To complete the setup, the kit includes a premium multi-fit CNC aluminium fairlead. This versatile component supports both standard and offset rope mounting positions to suit a wide range of bullbars and winch mounts.

Why Choose This Kit?

• Protection: 12V sealed winch control box built for the elements.
• Power: High-rating 600A solenoid for reliable switching.
• Installation: Supplied cables and hardware allow for straightforward installation on compatible winches.
• Flexibility: Wireless operation allows for safer vantage points during heavy recoveries.

Contents

1 x Sealed control box with integrated 600 amp solenoid
1 x Wired winch remote
1 x Wireless winch remote
1 x Multi-fit CNC aluminium fairlead
1 x Battery and control cables set
1 x Mounting hardware kit
1 x Carbon Offroad keyring
